MODEL SS-80 STAINLESS STEEL UNIVERSAL FLANGE ADAPTER
The Model SS-80 Flange Adapter provides for a rigid transition between a grooved piping system and a flanged piping system or component. The SS-80 can mate to a variety of flange type including ANSI class 125/150, PN10 / PN16 and JIS 10K. The SS-80 is investment cast standard in grades CF8 (304) and CF8M (316). In addition the SS-80 is also available on request in CF3M (316L), 316Ti, 2205 Duplex and 2507 Super Duplex to meet your specific service requirement.

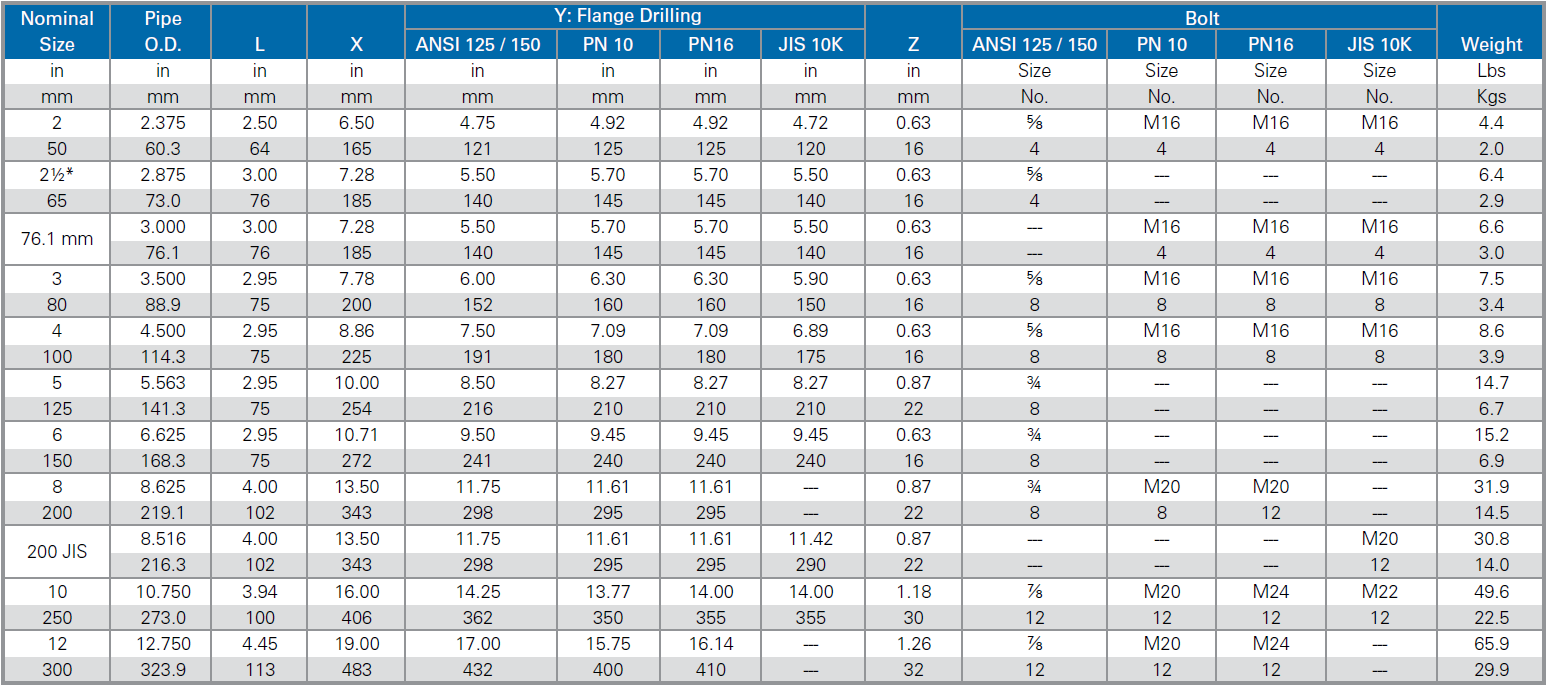

Shurjoint Model SS-80 pressure ratings conform to the working pressure of the coupling used to join the system.
|
