MODEL SS-1200 STAINLESS STEEL HIGH PRESSURE FLEXIBLE COUPLING

The Model SS-1200 is designed for high pressure applications including reverse osmosis, desalination and other specialty systems.  The SS-1200 is available in strong and anti-corrosive alloys of Duplex CD3MN (2205), Super Duplex CE8MN, CE3MN (2507) and 6-Moly stainless steel CK3MCuN (254SMO*).  The SS-1200 features 316 bolts, washers and silicon bronze nuts to help prevent galling during repetitive use.

* 254SMO is a registered trademark of Avesta Polarit AB.

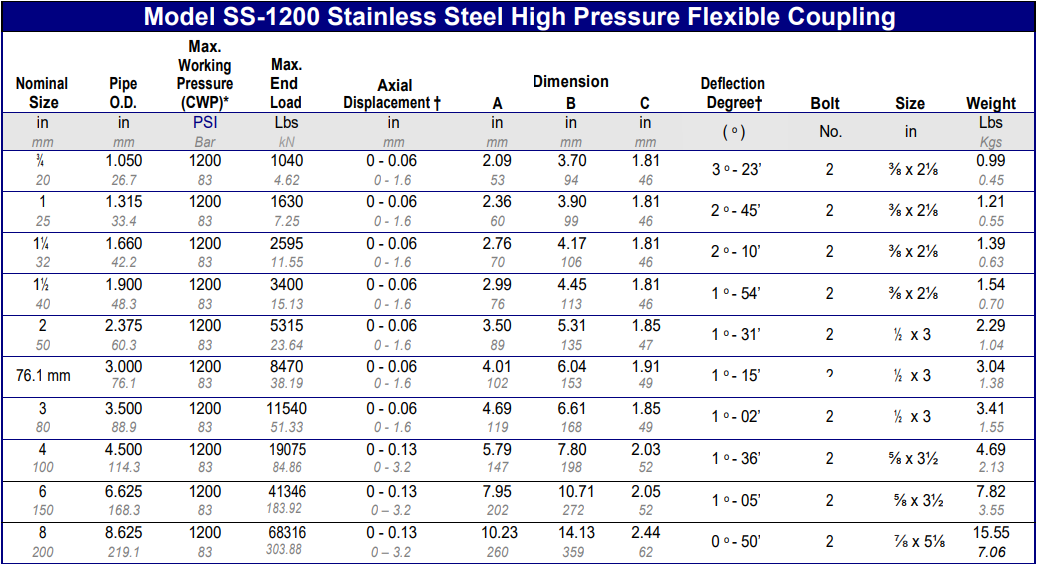

* The working pressure shown is based on cut-grooved Sch. 40S or 80S pipe only.

† Allowable Axial Displacement and Angular Movement (deflection) figures are for roll grooved standard steel pipe. Values for cut grooved pipe will be double that of roll grooved. These values are maximums; for design and installation purposes these figures should be reduced by: 50% for ¾”/DN20 – 3½”/DN90; 25% for 4”/DN100 and larger to compensate for jobsite conditions.

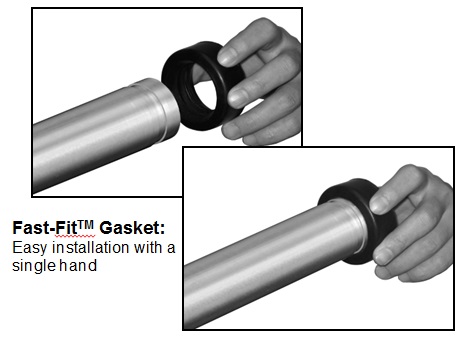

The Shurjoint Fast-Fit^TM gasket has been designed and engineered for easier and faster installations.  The pipe-end friendly design eliminates struggling to stretch the gasket over the pipe ends and the Fast-Fit^TM gasket also features Shurjoint’s GapSeal technology, which seals the gap between the pipe ends and eliminates stagnant water pockets within the gasket cavity.  The Fast-Fit^TM gasket is UL classified in accordance with NSF/ANSI 61 and NSF/ANSI 372 for potable water (Cold Water +86°F / 30°C and Hot Water +180°F / +82°C).
