WROUGHT STEEL GROOVED END FITTINGS

The Shurjoint wrought steel grooved end fittings are available 10” (250 mm) through 42” (1050 mm) pipe sizes in a variety of styles. Fittings are fabricated from standard weight (0.375” or 9.5 mm) carbon steel pipe to ASTM A234 Gr. WPB or equivalent grade, or segmentally welded with carbon steel standard weight pipe. C-E dimensions conform to ANSI B16.9.  Other styles not listed are available upon request.

Fittings are painted orange or red, or as an option can be supplied hot-dip galvanized or epoxy coated.

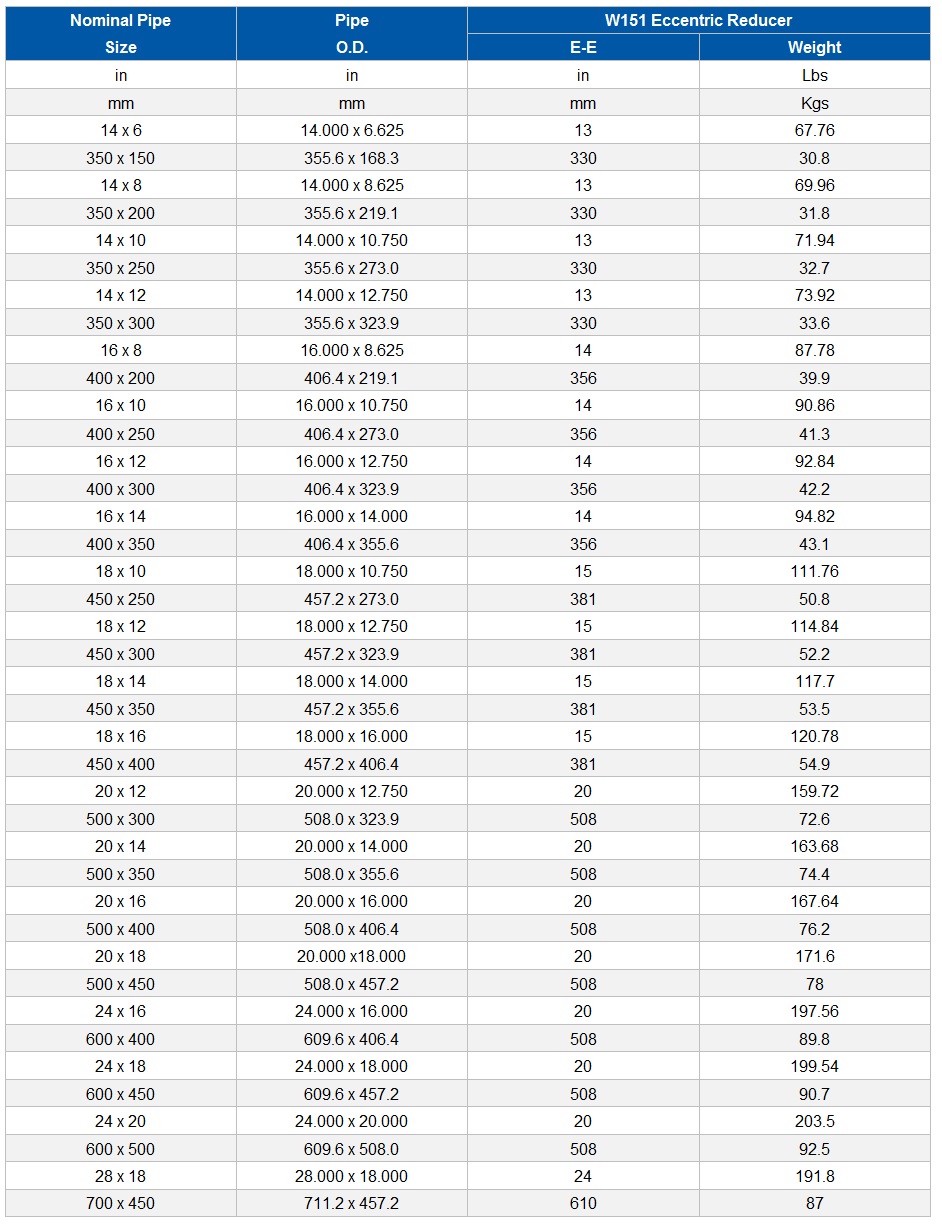

MODELS W151 WROUGHT ECCENTRIC REDUCER

Material: Fabricated with ASTM A234 Gr. WPB, standard weight (0.375” or 9.5 mm), or segmentally welded carbon steel of the same or equivalent grade.

E-E dimensions: conform to ANSI B16.9.
