MODEL 7110DR DRAIN ELBOW

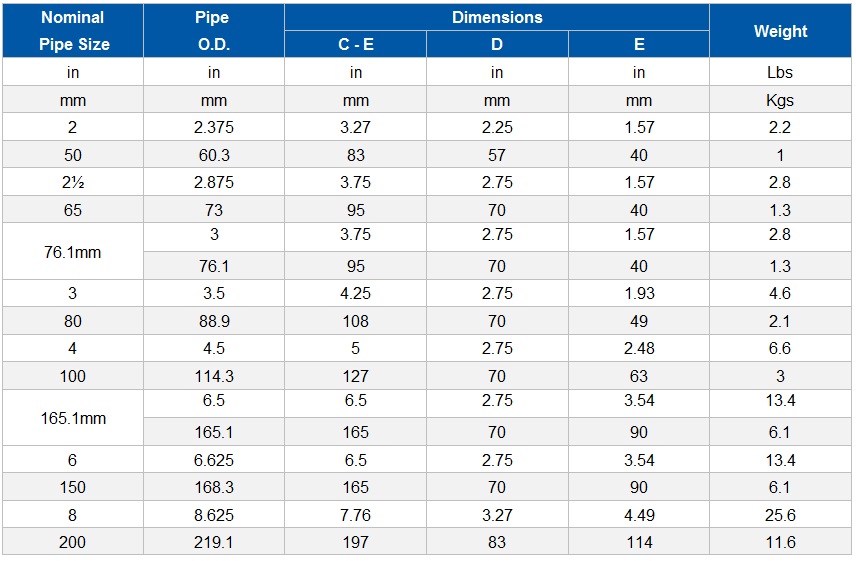

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12 and or ASTM A395 Gr. 65-45-15. C-E dimensions are manufacturer’s standard.
Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
The Model 7110DR is a grooved-end ductile iron cast elbow with an integral 1” NPT or BSP drain. The 7110DR was primarily designed for, but not limited to, use on fire protection standpipes.
|
