MODEL 903 SHORT RADIUS TEE
Shurjoint short radius fittings, while primarily designed for fire protection applications, can also be used for general service requirements. The Model K-9 and Z05 rigid couplings can be used with short radius fittings without the worry of bolt pad interference.

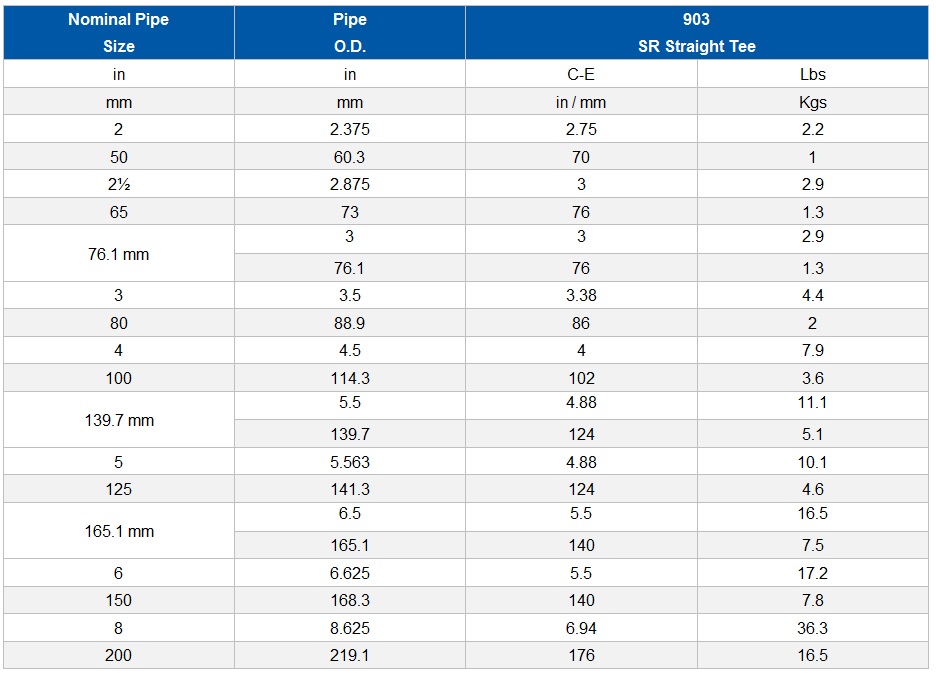

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12 and or ASTM A395 Gr. 65-45-15. C-E dimensions are manufacturer’s standard.
Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
|
