MODEL M22 MECHANICAL TEE, GROOVED-END OUTLET

The Shurjoint Model M22 features an advanced design and when mounted on hole cut pipe Model M22 pro vides a fast and easy mid-pipe grooved branch outlet.  By utilizing the Model M22 you can eliminate the need for welding or the use of multiple fittings.  The M22 Mechanical Tee is com­prised of upper and lower ductile iron housing segments, a grade “E” EPDM rubber gasket (Model M22 & M21 gaskets are interchangeable) and plated track bolts and nuts.  The groove dimensions conform to AWWA C606.

The M22 Mechanical T Mechanical tees are supplied with our standard painted finishes, i.e. orange or RAL3000 red.  Optional finishes such as hot dipped zinc galvanized and custom epoxy coatings are also available.

Shurjoint mechanical tees: Model M22, M21, 7721 & 7722 can also be used on applicable IPS size HDPE pipe.  When used in conjunction with HDPE pipe the pressure rating would be the lower of the fitting or pipe rating.  Please note Shurjoint mechanical tees are not recommended for use on PVC plastic pipe.

Important Note: Model M22 housing segments are not compatible and should not be used with other Shurjoint mechanical tee housing segments such as Model 7721 & 7722 mechanical tees.

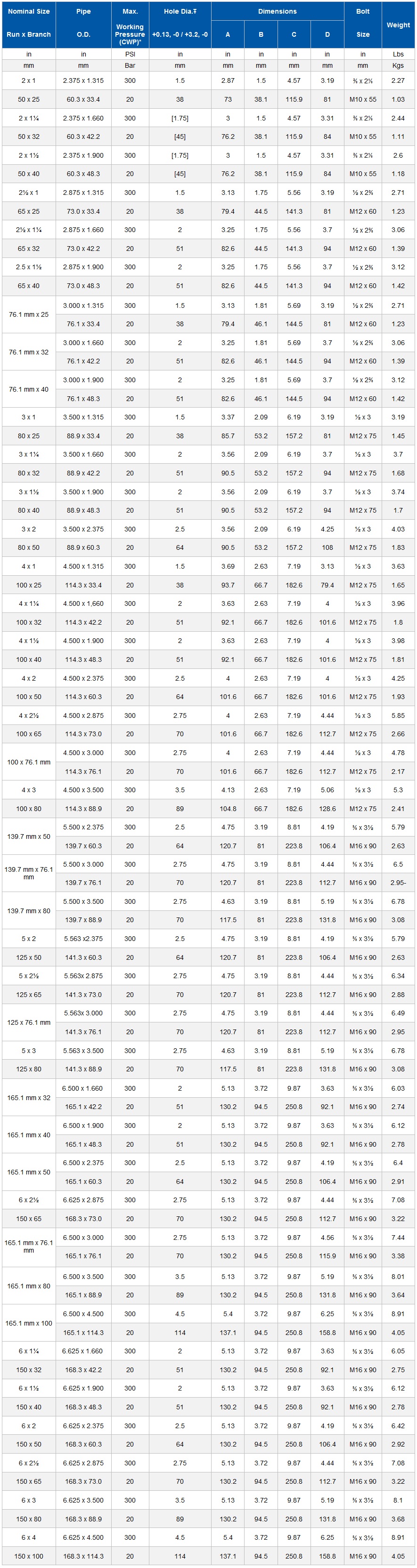

1. Ŧ Hole diameters listed are suggested hole diameters.
2. [  ] Important: Make special note of the hole saw size and maximum diameter allowed on these sizes, deviation could lead to joint failure.
3. *Working pressure is based on grooved standard wall carbon steel pipe.
