MODEL 7722 MECHANICAL TEE, GROOVED-END OUTLET

The Model 7722 Mechanical Tee when mounted on the hole cut pipe provides a fast and easy mid-pipe grooved-end branch outlet.  By utilizing the Model 7722 you eliminate the need for welding or the use of multiple fittings. The mechanical Tee is comprised of upper and lower ductile iron housing segments, a grade “E” EPDM rubber molded gasket and plated track bolts and nuts. Mechanical tees are supplied with our standard painted finishes, i.e. orange or RAL3000 red. Optional finishes such as hot dipped zinc galvanized and custom epoxy coating are also available.

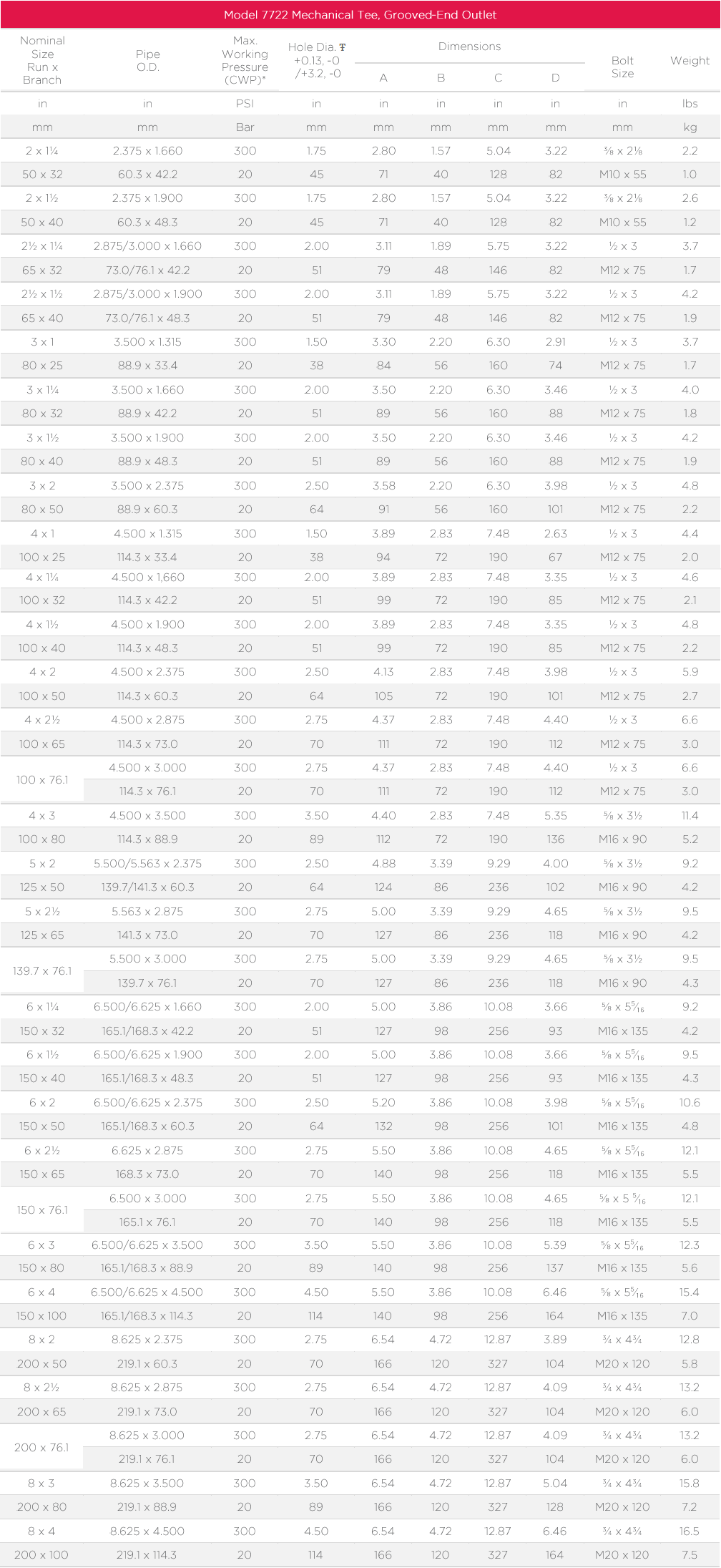

1. Ŧ Hole diameters listed are suggested hole diameters.
2. *Working pressure is based on roll- or cut-grooved standard wall carbon steel pipe.
