MODEL M07 QUICK INSTALL COUPLING

-Quick Install Design-

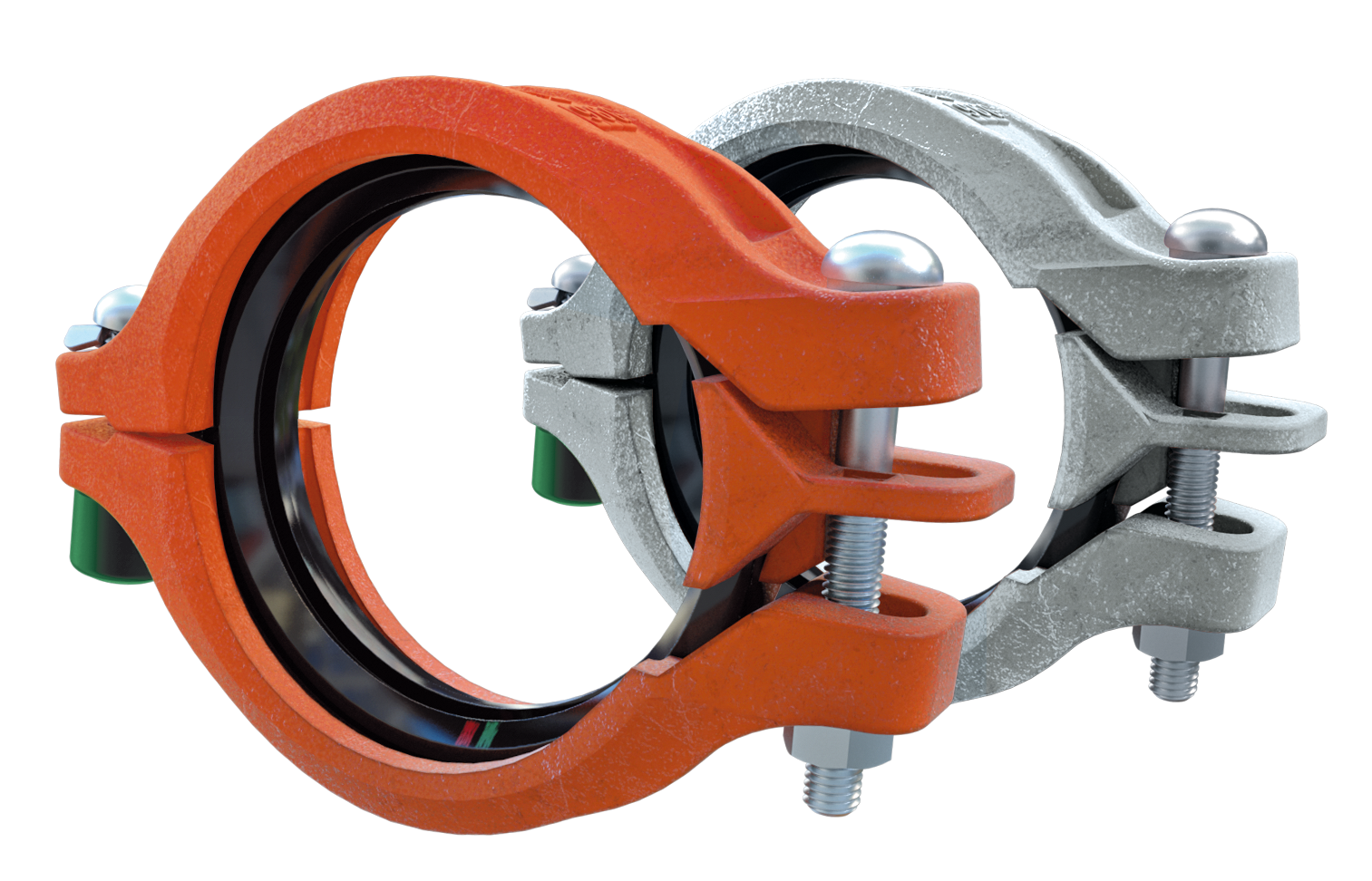

The Shurjoint Model M07 is a ready to install rigid coupling for general piping applications where rigidity is required including valve connections, mechanical rooms, risers and long straight runs. This proprietary design provides a rigid joint that resists flexural and torsional loads. Support and hanging requirements corresponding to ANSI B31.1. B31.9 and NFPA 13. The Shurjoint Model M07 is available with a proprietary EPDM gasket, which includes a GapSeal and a center leg feature to support the coupling during installation. The M07 includes two identical housing segments and a fully constrained wedge.

Caution: Ensure coupling bolt pads make metal-to-metal contact.

Proper installation requires the tightening of only one bolt/nut. As this bolt/nut is tightened, the wedge applies uniform compression to the gasket, reducing the chance of pinching. The hinge bolt/nut is factory pre-set and requires no adjustment.

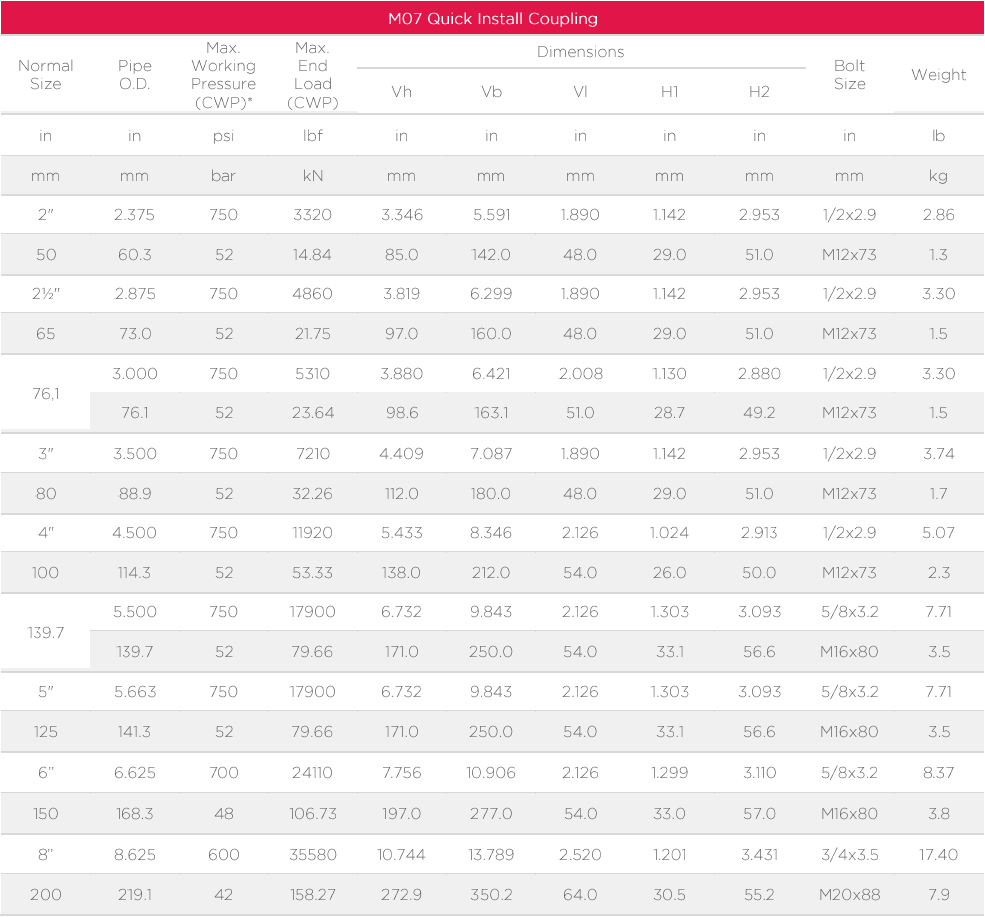

* Working Pressure is based on roll grooved standard wall carbon steel pipe.
