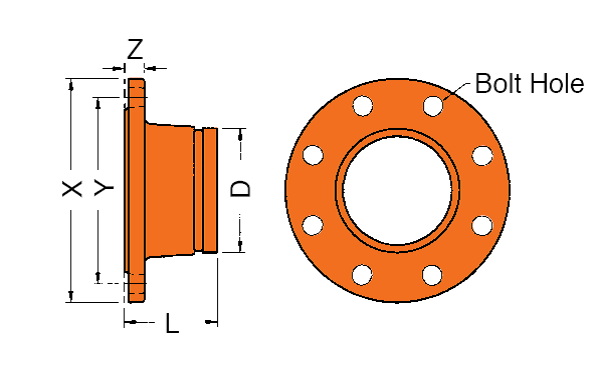

MODEL 7170 FLANGE ADAPTER
The Model 7170 Flange Adapter provides a rigid transition between ANSI class 125 / 150 flanged components and a grooved system.
Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

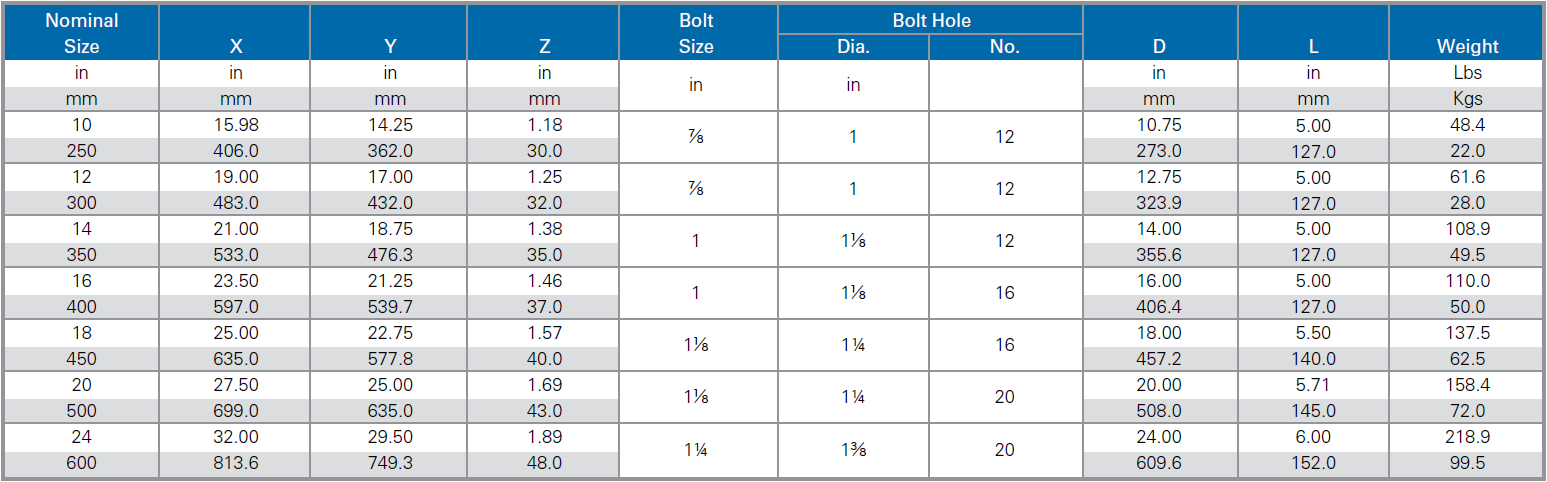

MODEL 7170 FLANGE ADAPTER ANSI CLASS 125 / 150

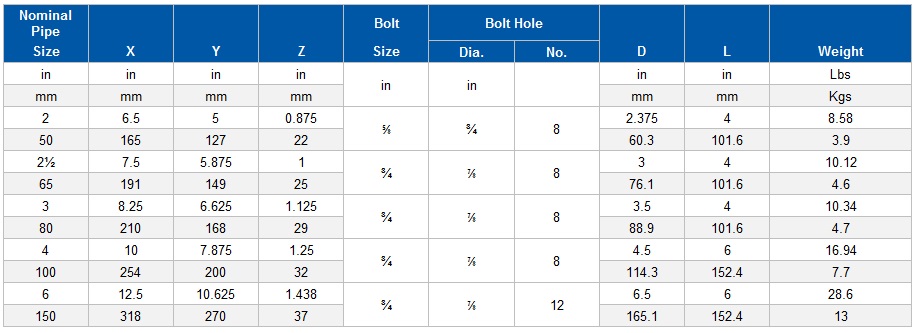

MODEL 7170 FLANGE ADAPTER ANSI CLASS 300 (Fabricated)
The Model 7170 Flange Adapter (fabricated) in sizes2” ~ 6” provide a direct connection to Class 300 flanges.

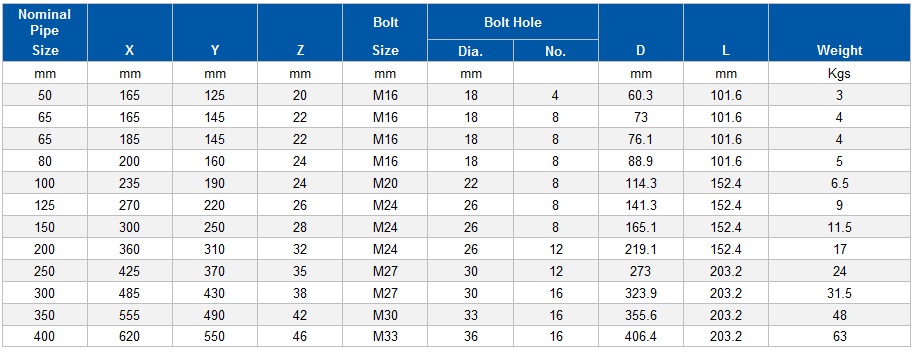

MODEL 7170 FLANGE ADAPTER PN 25 (Fabricated)
The Model 7170 Flange Adapter (fabricated) in sizes2” ~ 16” provide a direct connection to PN 25 flanges.
|
