MODEL SJ-300N BUTTERFLY VALVE

The Model SJ-300N Butterfly Valve is a grooved-end tight shut-off valve designed, manufactured and tested to MSS SP-67.  The valve can be shipped either with a 10-position lever handle with a locking device (SJ-300N-L) or with a worm gear operator (SJ-300N-W).  The valve consists of epoxy powder coated ductile iron body and EPDM or Nitrile (NBR) rubber encapsulated dual-seal disc.  The Model SJ-300N is rated up to + 200°F (+93°C) for general service use and is UL classified in accordance with NSF/ANSI 61 and NSF/ANSI 372 for potable water service up to temperature +180°F (+82°C).

MODEL SJ-300N-W BUTTERFLY VALVE WITH GEAR OPERATOR

The Model SJ-300N can be equipped with a worm gear operator.

The ISO 5211 mounting pad allows for the mounting of power actuators.

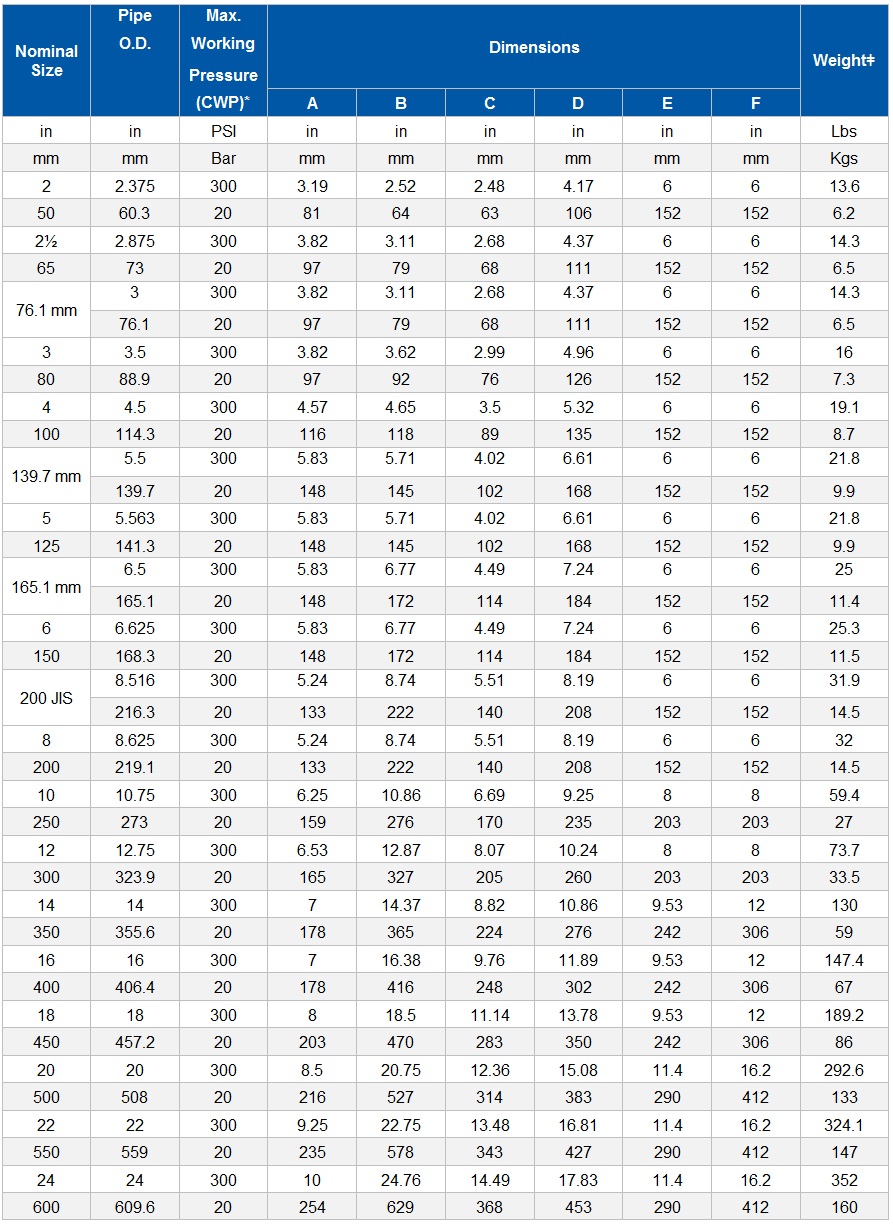

* Working pressure is based on connection with roll- or cut-grooved standard wall carbon steel pipe.

ǂ The weight includes the worm gear operator.
