MODEL A512 FLANGE ADAPTER
The Model A512 Flange Adapter provides for the direct connection between AWWA ductile iron radius pipe grooves and flanged components. The two part flange features integral closure tabs to aide in assembly.
Note: Like with other flange adapters, the A512 requires a sufficient smooth flat mating area for proper sealing. Please refer to the below notes.

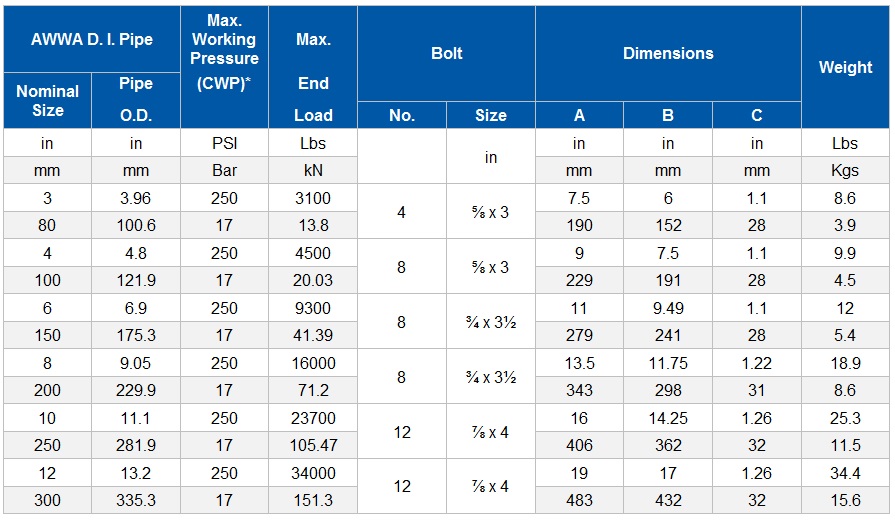

 * Pressure ratings listed are based on radius cut-grooved Thickness Class 53 or higher pipe.
|
