MODEL SJ-C300 BUTTERFLY VALVE

The Model SJ-C300 is a lever handle bronze body butterfly valve designed for use with grooved copper tubing (CTS), fittings and couplings.  This valve features a 10 position locking lever handle and lead-free bronze body and EPDM rubber encapsulated dual-seal disc.  The lead-free bronze body conforms to ASTM B-584 copper alloy C83470 or C89836 bronze.  Both bronze valve body and the EPDM rubber disc are classified in accordance with NSF/ANSI 61 and NSF/ANSI 372 for use in cold +86^oF (+30^oC) and hot +180^oF (+82^oC) potable water system. The SJ-C300 is UL classified in accordance with NSF/ANSI 61 and NSF/ANSI 372 for portable water use. Also available with factory installed gear operator on request.

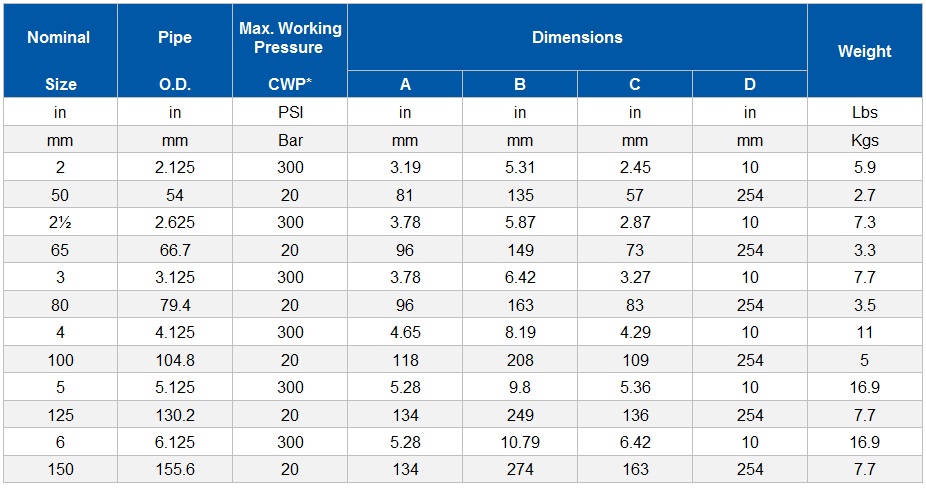

*Working pressure is for connection with roll-grooved Type K copper tubing.

* Please note that 2”, 2½”, and 3” Model C341 Flanges cannot be used for making direct connections to Model SJ-C300 Butterfly Valves due to bolt pad interference with the valve.
