MODEL C723 BRONZE MECHANICAL TEE FOR COPPER TUBING (CTS)
The Shurjoint Model C723 provides a fast, easy and reliable branch connection from copper tubing (CTS). The fitting consists of bronze upper housings, ductile iron lower housing, rubber gasket and carbon steel track bolts and nuts. The lead-free bronze castings conform to ASTM B-584 copper alloy C83470 (93-4-0-2) is available with a female threaded outlet, NPT or BSPT. The fitting is available with a female threaded outlet, NPT or BSPT.

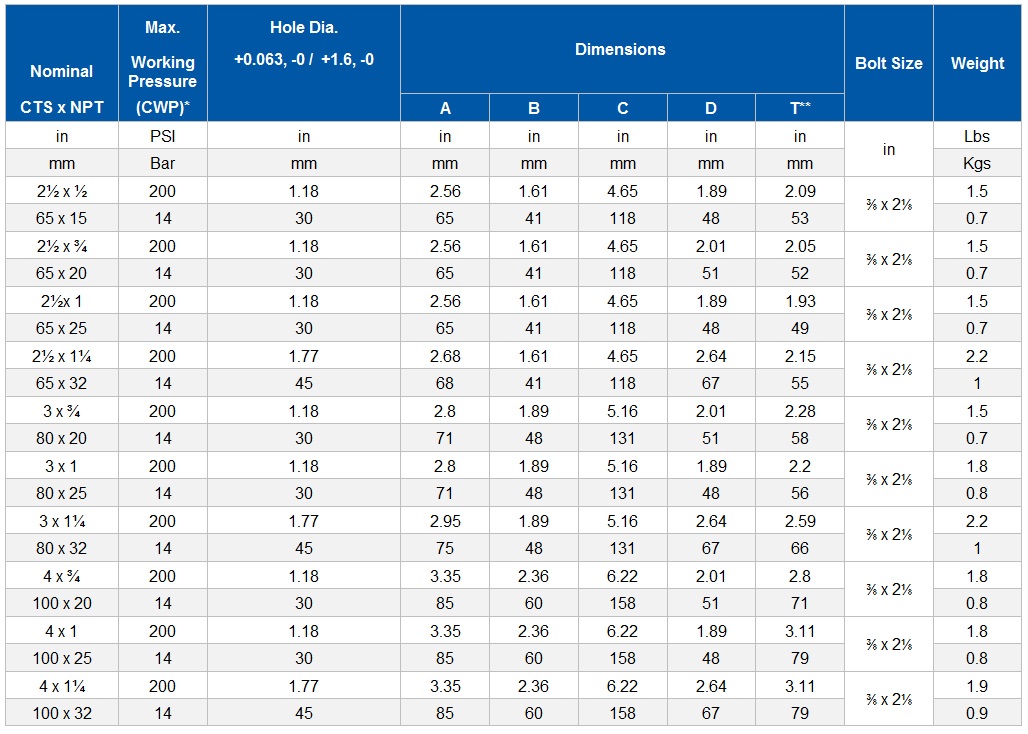

 *Working pressure is for connection with Type K copper tubing.
**T: Center of run to engaged pipe end (approx.).
|
