H305 HDPE Coupling Download PDF

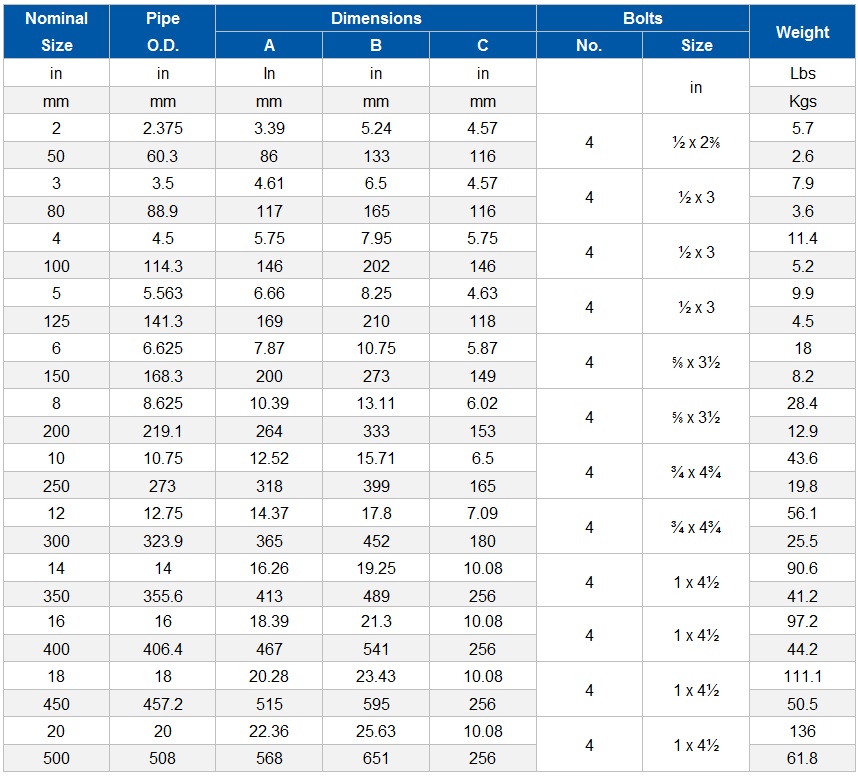

MODEL H305 HDPE COUPLING

The Shurjoint Model H305 HDPE couplings feature four bolt housings and a series of sharply machined teeth which positively grip the pipe as the coupling bolts and nuts are tightened.  The result is a leak-tight joint that is as strong, or stronger than the pipe itself.  The H305 also features a contoured housing with integral ramps along the outside diameter to help the coupling slide over most obstacles during the relocation of pipe runs.

Download PDF
