MODEL RX-3000 3000 PSI RING JOINT COUPLING
The Shurjoint Model RX-3000 coupling is a high pressure ring joint coupling for use with Sch. 80, 120 or heavier wall carbon steel pipelines.
The coupling is comprised of two ductile iron heavy-wall housings, rubber gasket (EPDM or Nitrile) and two or four heat-treated track bolts and nuts which provide a fully restrained joint with maximum working pressure up to 3,000 psi (210 Bar) depending on the pipe used.

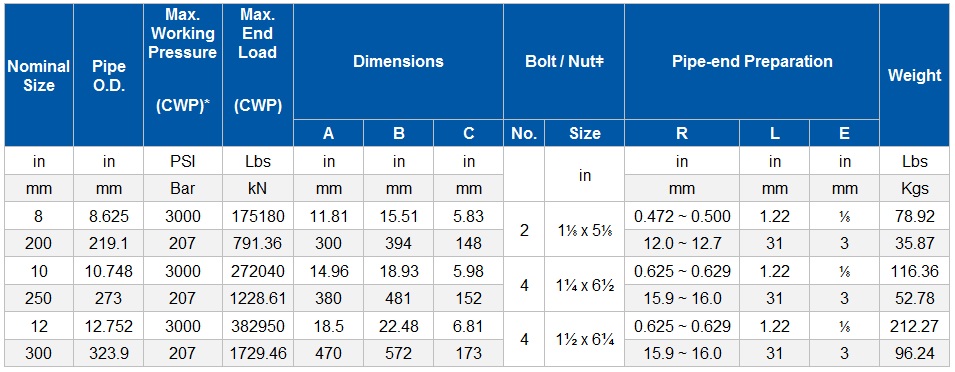

 *Working pressure is based on API 5L X65 line pipe.
ǂBolts & nuts are UNC threaded.
|
