MODEL RH-1000 1000 PSI RING JOINT COUPLING
The Shurjoint Model RH-1000 coupling is a high pressure ring joint coupling for use with Sch. 40, Sch. 80 and heavier wall carbon steel pipelines.
The coupling is comprised of two ductile iron heavy-wall housings, rubber gasket (EPDM or Nitrile) and two heat-treated track bolts and nuts and provides a fully restrained joint with maximum working pressure up to 1,000 psi (70 Bar) depending on the pipe used.

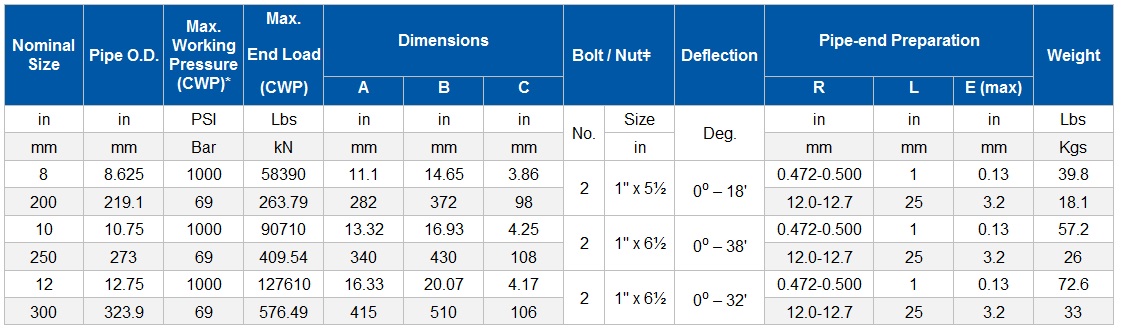

 *Working pressure is based on standard wall carbon steel pipe.
ǂBolts & nuts are UNC threaded.
|
