L90-5D / L60-5D / L45-5D / L30-5D / L22-5D / L11-5D Wrought Elbows Download PDF



LONG RADIUS 90° ELBOWS (BENDS) 3D, 5D AND 6D

PRODUCT DESCRIPTION

1. Long radius 90° elbows 3D, 5D, and 6D in sizes up to and including 4” are provided with 4” (102 mm) long tangents, sizes 5” to 10” are provided with 1D long tangents and sizes 12” to 30” are provided with 12” (305 mm) long tangents.

2. End Preparation: Roll-grooved to AWWA C606-04 and or ISO/FDIS 6182-12. For dimensional tolerances of cast fittings, refer to ISO/FDIS 6182-12 Table 3.
•  Plain-end, beveled end or cut-grooved end are also available upon request.

3. Material: standard wall steel pipe to ASTM A53, Grade B. Other materials available on request.

4. C to E tolerances:

    2” through 6” : ±⅛" (3.2 mm); 8” through 16” : ±¼" (6.4 mm);
   18” through 24” : ±⅜" (9.5 mm) ; 28” : ±1½" (12.7 mm)

5. All weights are approximate, based on calculated weight of pipe.

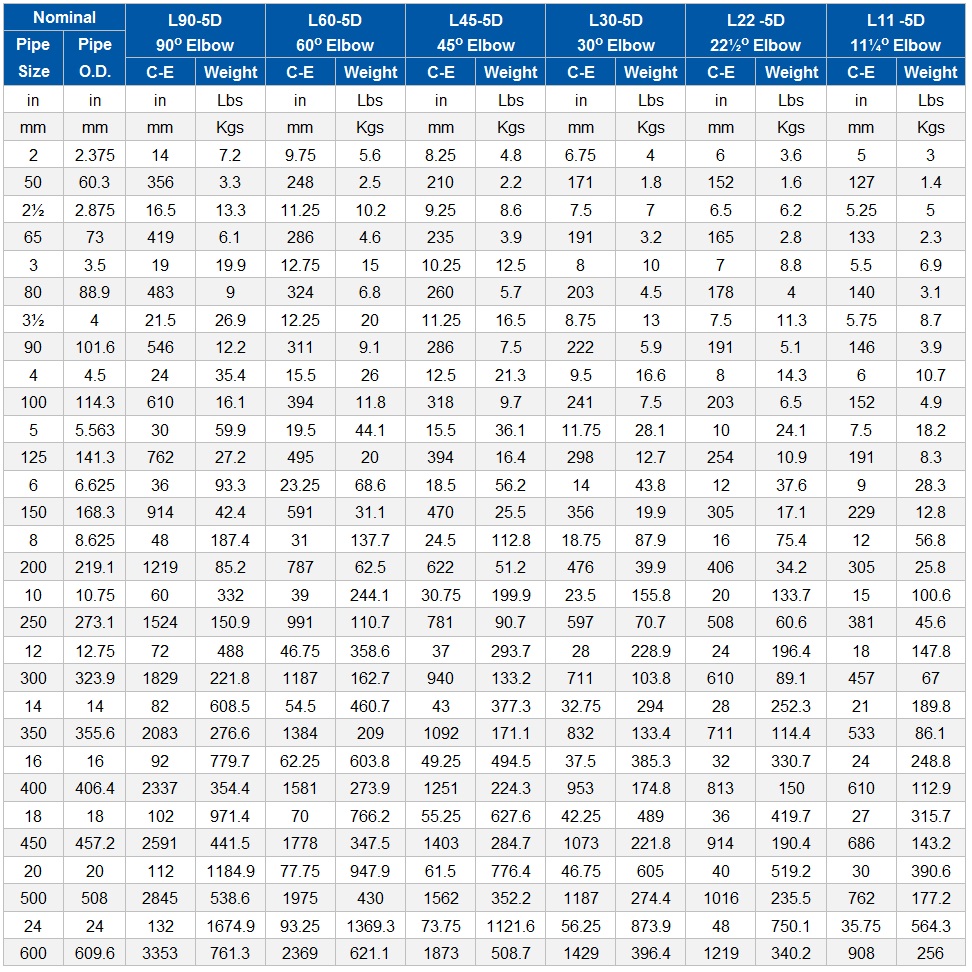

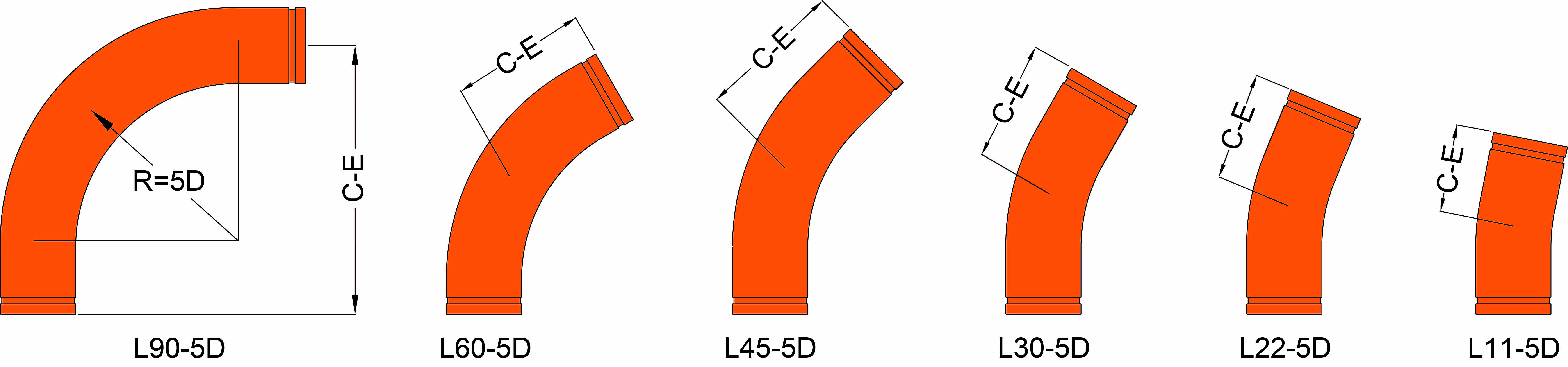

MODEL L90-5D WROUGHT 5D 90° ELBOW
              L60-5D WROUGHT 5D 60° ELBOW
              L45-5D WROUGHT 5D 45° ELBOW
              L30-5D WROUGHT 5D 30° ELBOW
              L22-5D WROUGHT 5D 22½° ELBOW
              L11-5D WROUGHT 5D 11¼° ELBOW
