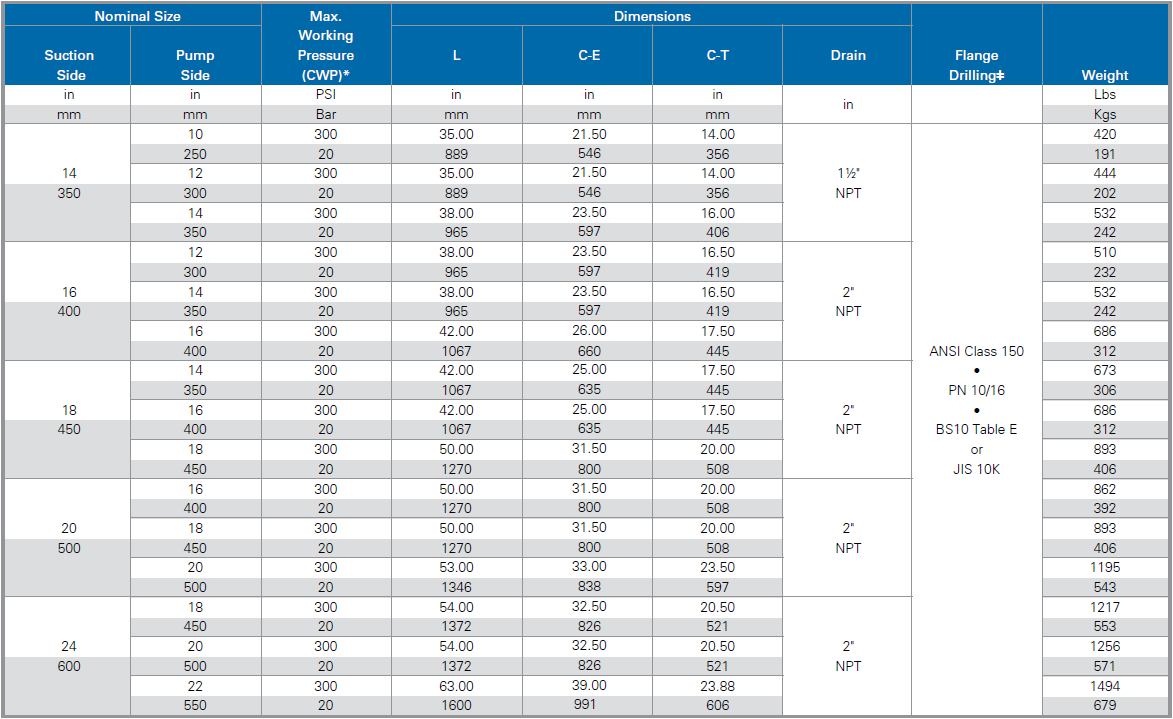

MODEL 725F SUCTION DIFFUSER (Fabricated)
Shurjoint offers large diameter suction diffusers with reduced outlet sizes that are made of segment welded steel. The factory standard #725F suction diffusers come with a grooved inlet and flanged outlet to ANSI Class 125 /150, PN10 or JIS 10K.
 * Working pressure is based on connection with roll- or cut-grooved standard wall carbon steel pipe.
＃When ordering, specify the desired flange drilling.
|
