MODEL SJ-500L BALL VALVE WITH LEVER HANDLE

The Model SJ-500L is a ductile iron, grooved-end, two-piece, regular port ball valve designed and tested in conformance with MSS SP-110 and SP-72.  The lever handle is equipped with tamper resistant locking holes. The SJ-500L is comprised of a ductile iron body and end cap, virgin TFE seats and chrome-plated carbon steel trim.  Also available with stainless steel trim as an option.

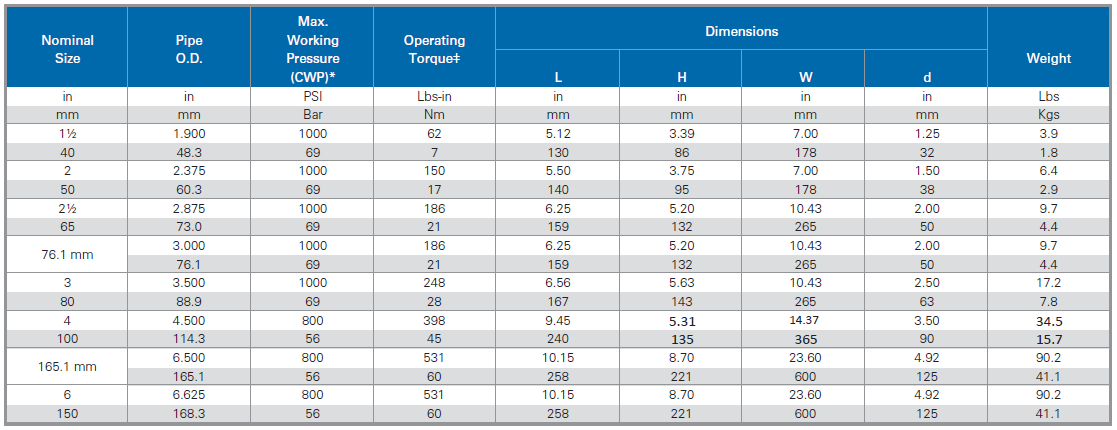

* Working pressure is based on connection with roll- or cut-grooved standard wall carbon steel pipe.

ǂ For the first opening or closing of the valve when the valve is not continuously operated, an additional torque of 2.0 – 2.5 times the listed operating torque is normally required.
