MODEL SJ-200 LOW-PROFILE BUTTERFLY VALVE
The Shurjoint Model SJ-200 Butterfly Valve is a low profile, grooved-end butterfly valve for oil & gas and or mining services. Working pressure is rated up to 232 psi / 1600 kPa and service temperatures up to +180°F/+82°C (Nitrile body liner). The Model SJ-200 features a fully rubber lined body with 316 stainless steel disc. The end-to-end dimensions conform to MSS SP-67. The lever handle is equipped with a tamper resistant locking device.

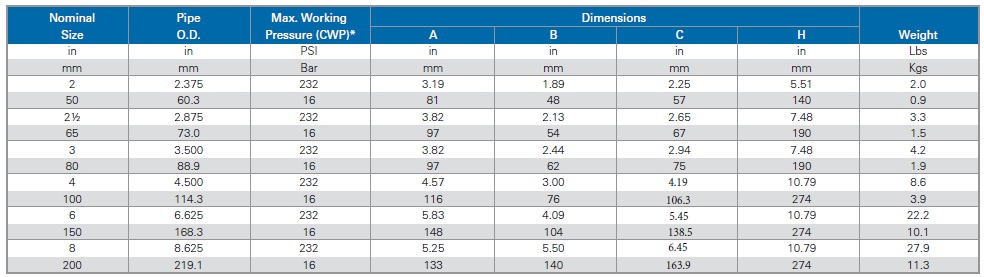

.jpg) *Working pressure is based on connection with roll- or cut-grooved standard wall carbon steel pipe.
|
