MODEL SJ-630 THREE PORT BALL VALVE

The Shurjoint Model SJ-630 is a grooved-end three-port ball valve designed to divert media from bottom inlet to either of the two outlets ports.  The valve port is a regular port size and the stem is a blowout proof design to MSS SP-72 and API Standard 608.  The valve is supplied with a carbon steel lever handle equipped with a tamper resistant locking device.

The valve body and three-port ball are made of austenitic stainless steel conforming to ASTM A351 CF8M(316) and blowout proof stem is stainless steel to ASTM A479 Type 316.  The Valve body and trim materials are in compliance with NACE MR-01-75 requirement.

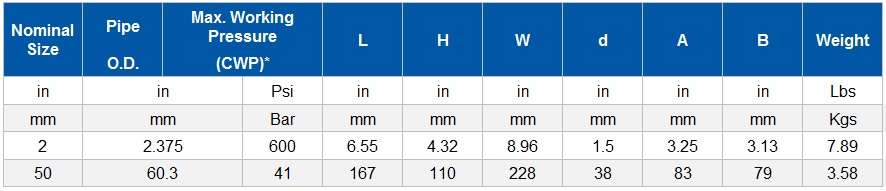

* Working pressure is based on connection with roll- or cut-grooved Sch. 40S stainless steel pipe.
