MODEL SJ-400-L BUTTERFLY VALVE WITH LEVER HANDLE

The Model SJ-400-L Butterfly Valve is a grooved-end stainless steel butterfly valve designed for 300 psi service, supplied with a 10-position locking lever handle.  The end-to-end dimensions conform to MSS SP-67.  The body is investment cast in grade CF8M (type 316) to ASTM A743 with integral neck and ISO mounting top flange.  The neck height allows for insulation up to two inches.  The disc is a dual-seal type, encapsulated either with Gr. E-pw EPDM for cold and hot water services or with Gr. T Nitrile for oil services.  SJ-400-L Butterfly Valves with standard disc and Gr. E-pw EPDM seat are UL classified to NSF/ANSI 61 and NSF/ANSI 372.

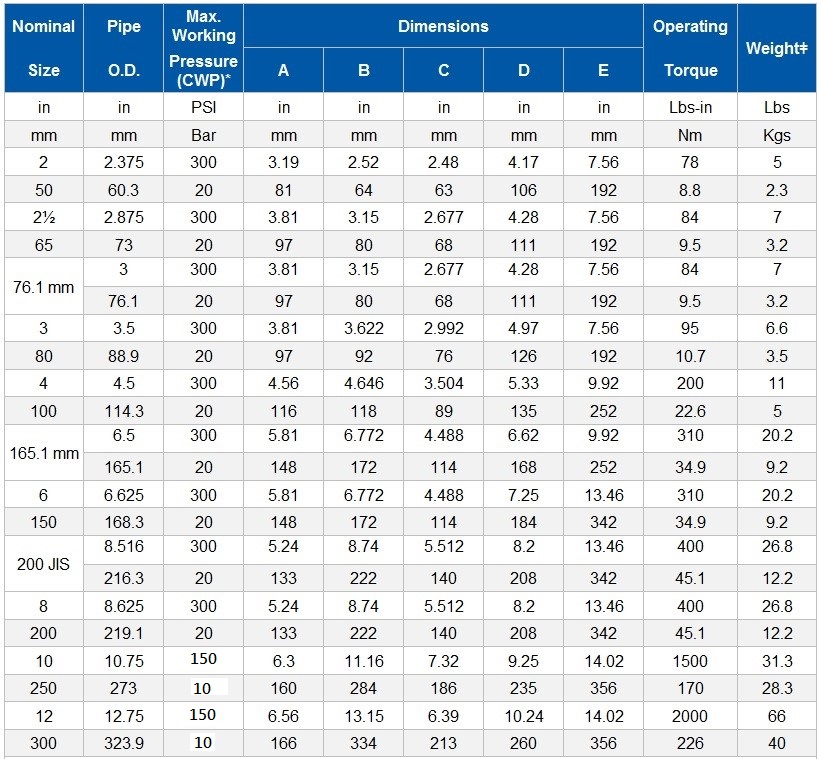

ǂ The weight includes the lever handle.
*Working pressure is based on connection with roll- or cut-grooved standard wall stainless steel pipe.
