MODEL SJ-600L BALL VALVE WITH LEVER HANDLE

The Model SJ-600L is a stainless steel, grooved-end, two-piece, full port ball valve designed and tested in conformance with MSS SP-110 and SP-72.  The lever handle is equipped with tamper resistant locking holes.  The SJ-600L is comprised of a stainless steel body and end cap, PTFE seats and stainless steel trim.  The valve is supplied standard in CF8M (316).

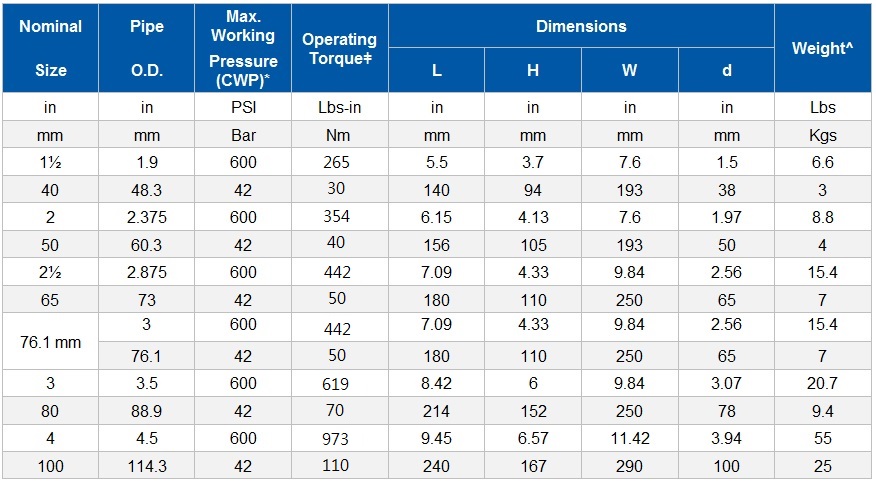

* Working pressure is for connection with cut- or roll-grooved schedule Sch. 40S pipe.

ǂ For the first opening or closing of the valve when the valve is not continuously operated, an additional torque of 2.0 – 2.5 times the listed operating torque is normally required.

^ The weight includes the lever handle.
