Performance Data Sheet –

Ductile Iron Couplings on Carbon Steel & Stainless Steel Pipe

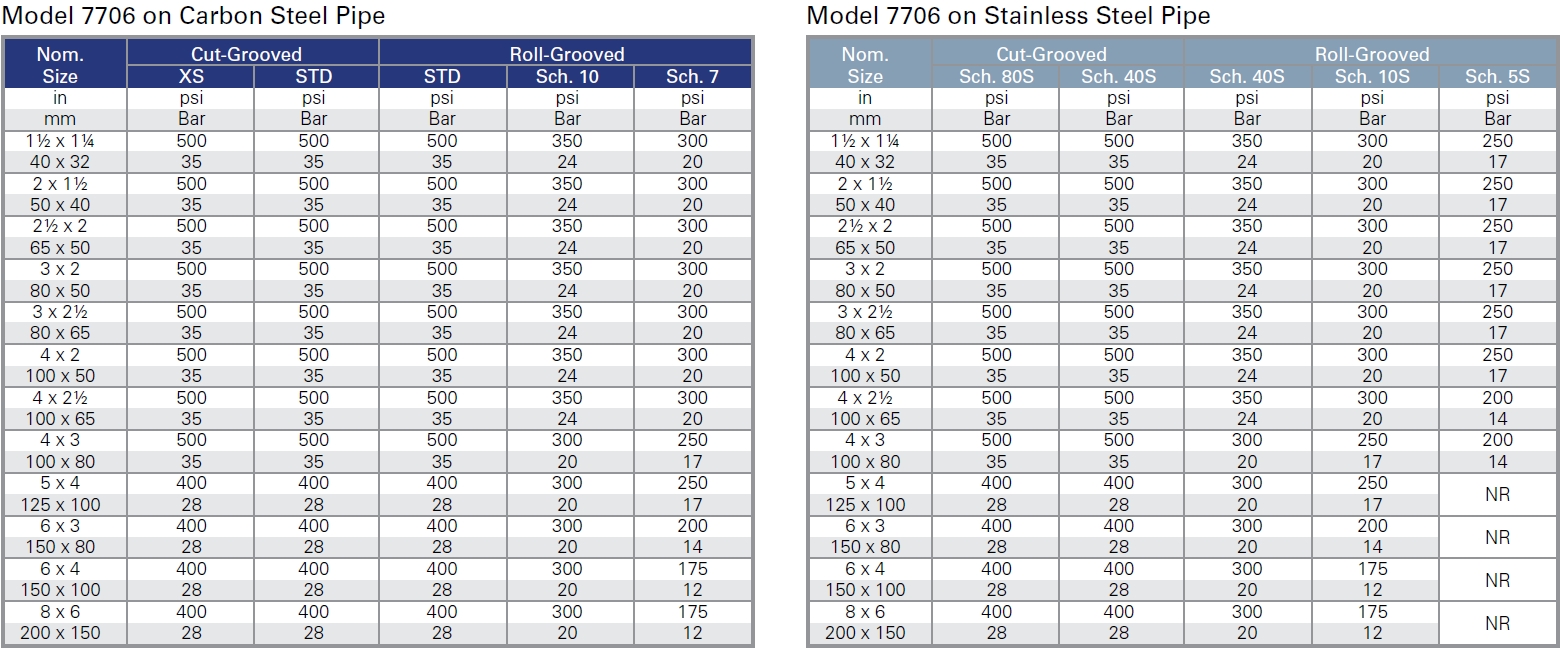

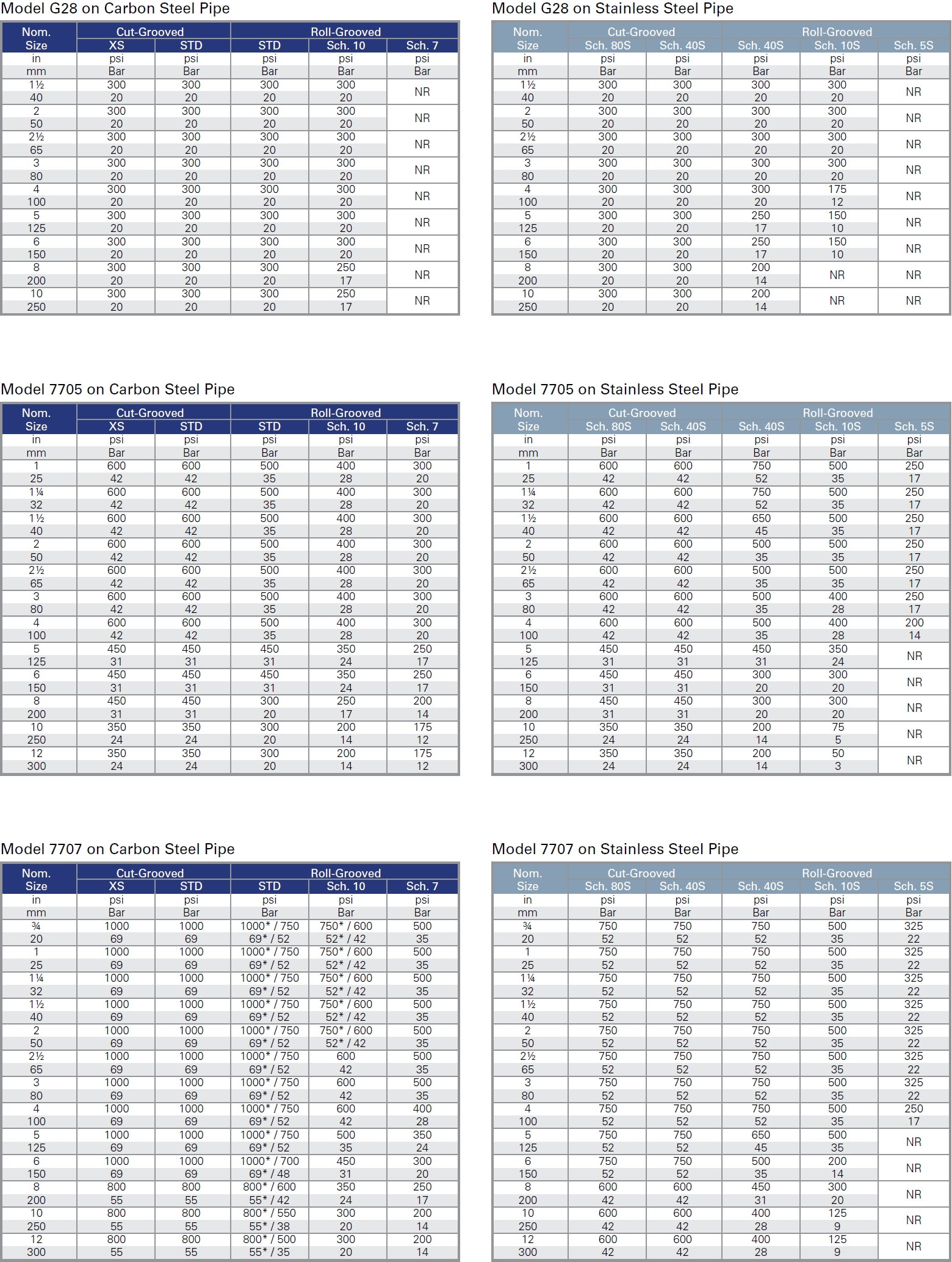

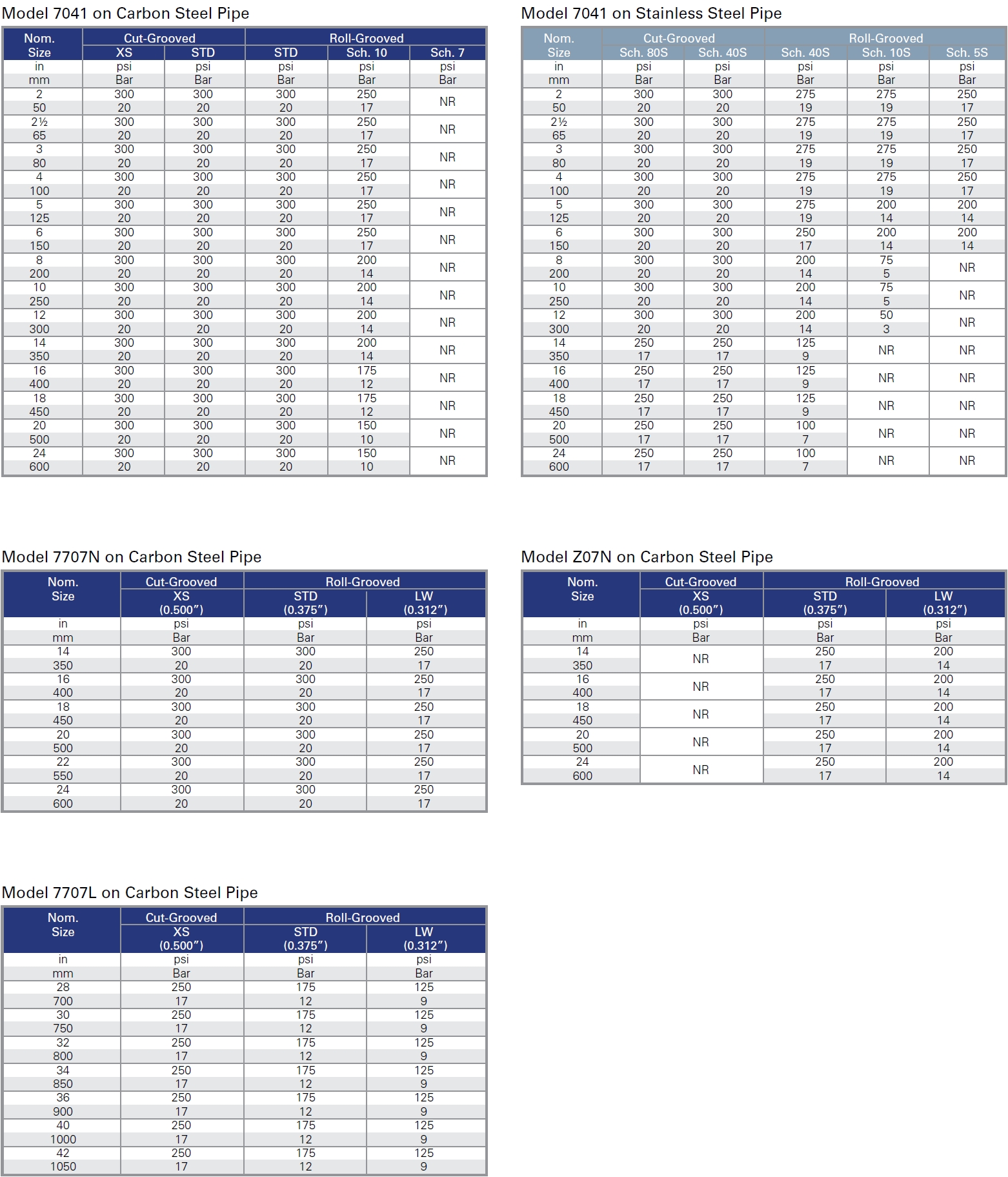

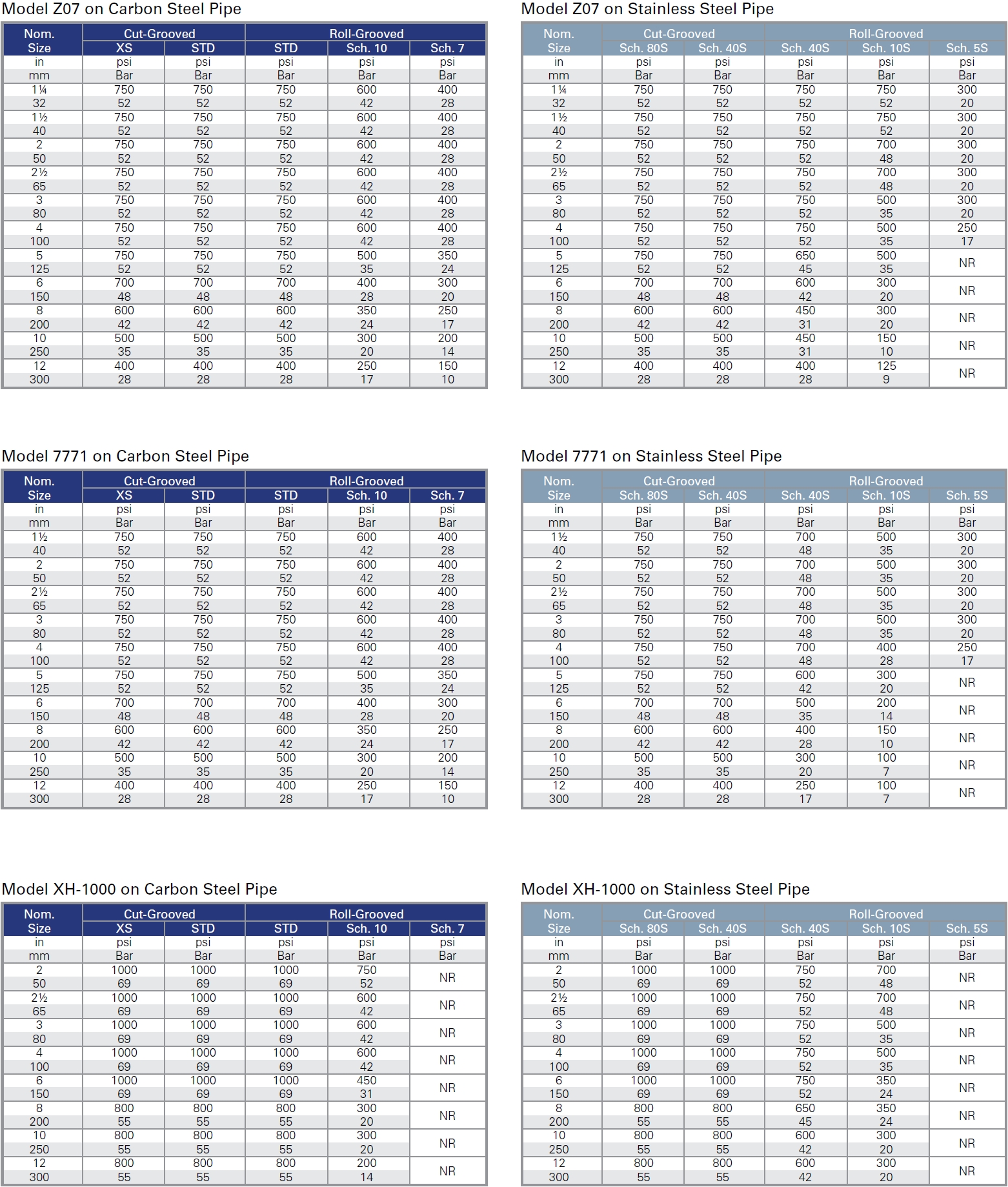

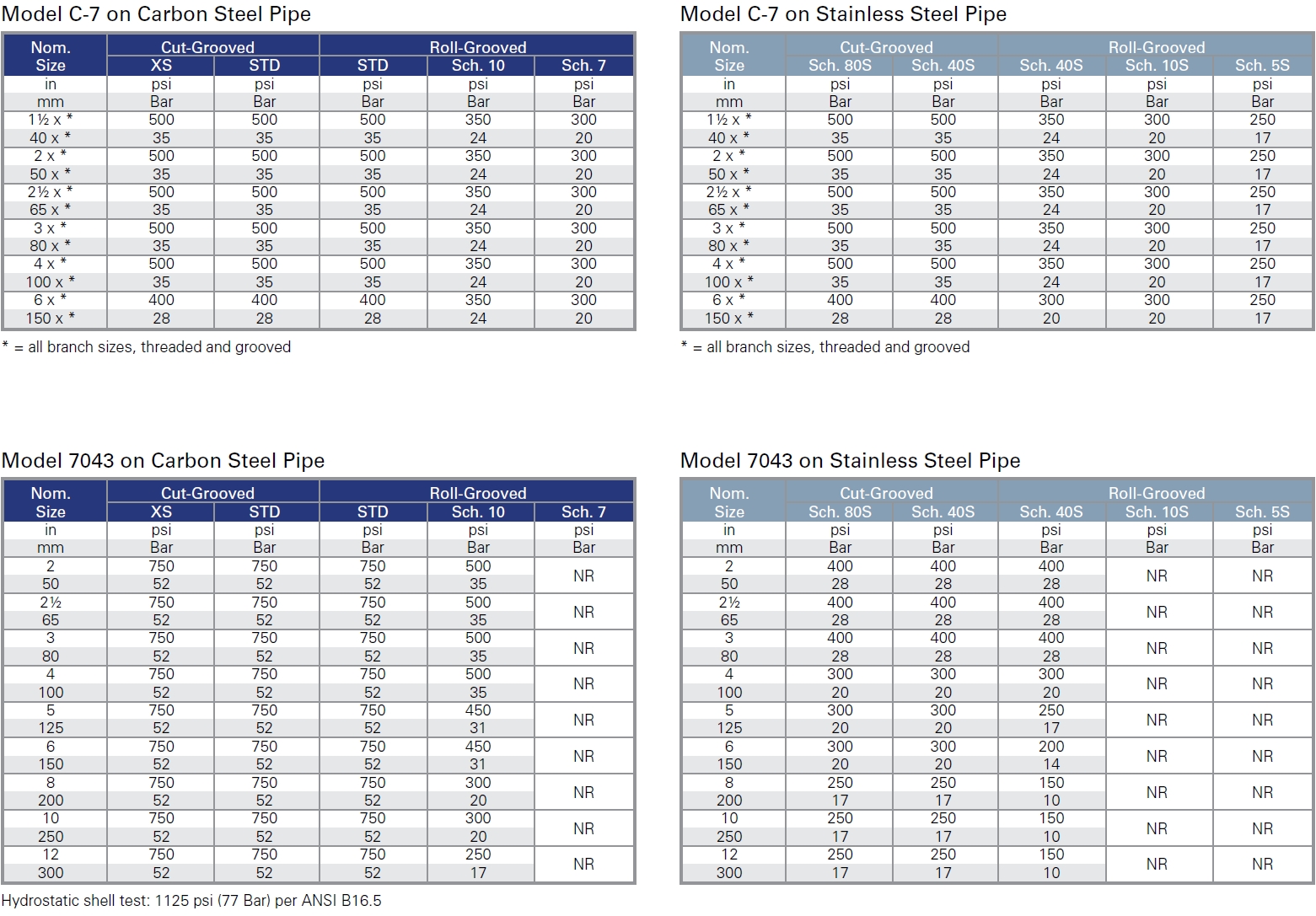

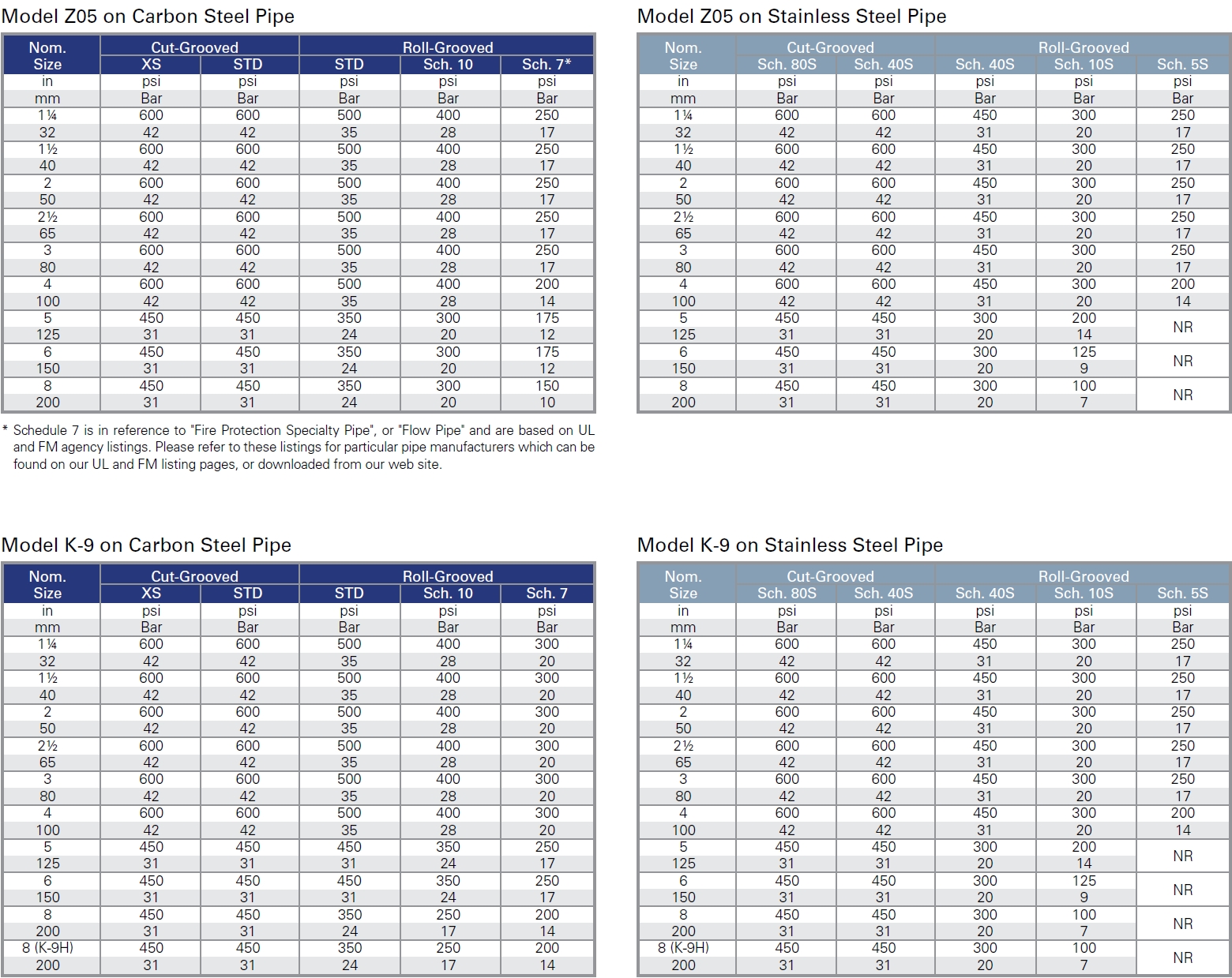

The following tables show maximum working pressures (CWP) of Shurjoint ductile iron couplings and flange adapters used on both carbon steel and stainless steel pipes.  Shurjoint ductile iron couplings can be used in conjunction with stainless steel pipe in non-corrosive environment as the flow media does not come in direct contact with the coupling housings but rather only the gasket. Stated pressure ratings have been developed with a safety factor. Please see Shurjoint’s 2017 online installation instructions for most recently updated instructions. Proper installation is important to proper performance.
