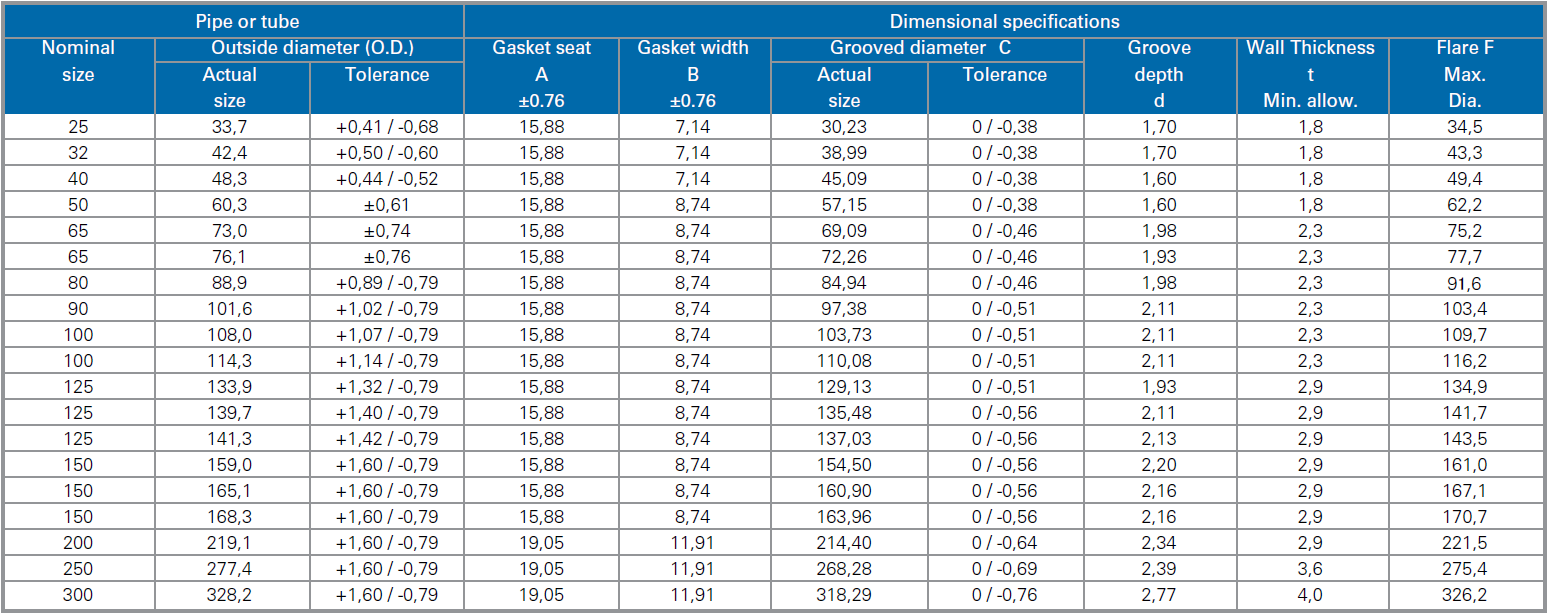

Roll Grooving Dimensions per ISO/FDIS 6182-12 Table 1

For ISO 4200:1991 Plain-end Steel Tubes, Welded and Seamless (Superseding BS 1387 and DIN 2440 & DIN 2448)

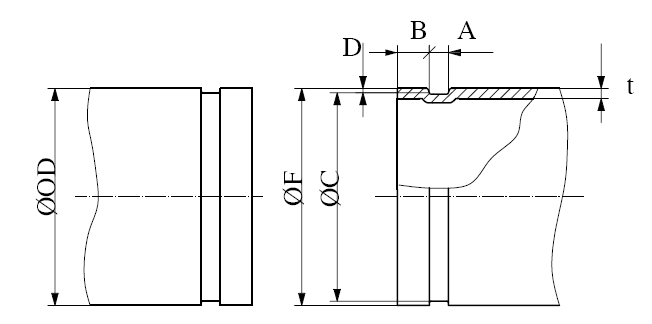

 Figure 1 - Roll Grooved-End Dimensional Reference Points for Table 1

Dimensions in millimeters

^a See Figure 1 for dimensional diagram

^b Dimension for reference only, groove diameter is determined by C.
